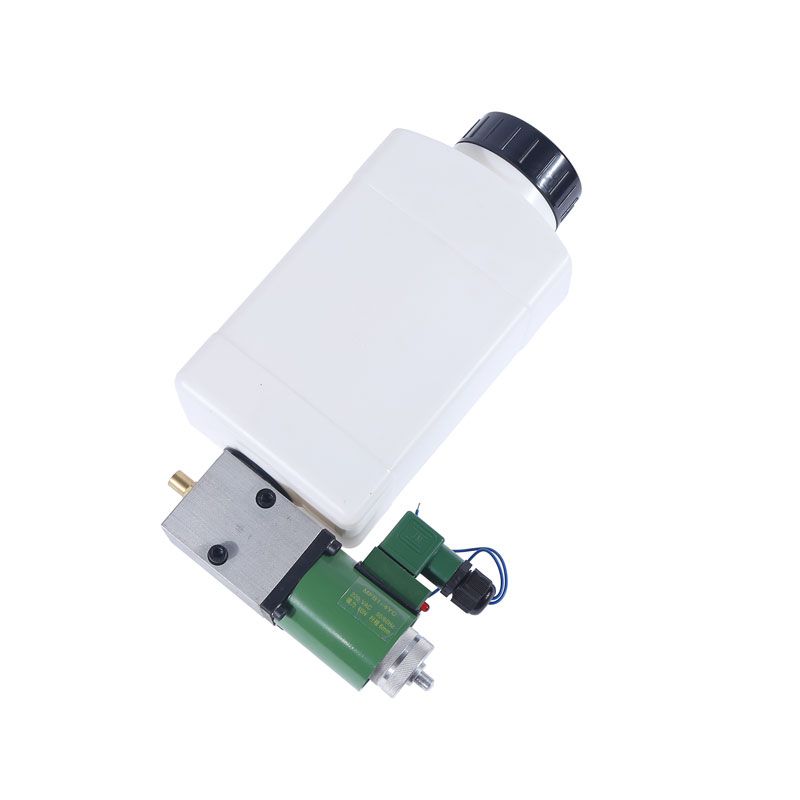

Electric pump
Electromagnetic plunger lubrication pump injection pump pulse injection chain quantitative oil injection most rock drill bit lubrication 2L DC24V AC220V
| Weight | 2 kg |
|---|---|
| Dimensions | 40 × 20 × 20 cm |
| Model |
2L |
| Voltage |
DC24V, AC220V |
1. Electromagnetic plunger pump (pulse plunger pump)
2. Maximum working frequency 20cyc/min
3. The highest oil injection pressure is 3MPa
4. Oil injection volume 0.24ml/cyc
5. Input power DC24V, AC220V
6. Lubricating oil viscosity 20 ~ 75mm ²/S, lubricating oil 32# 46# 68#~ 320#

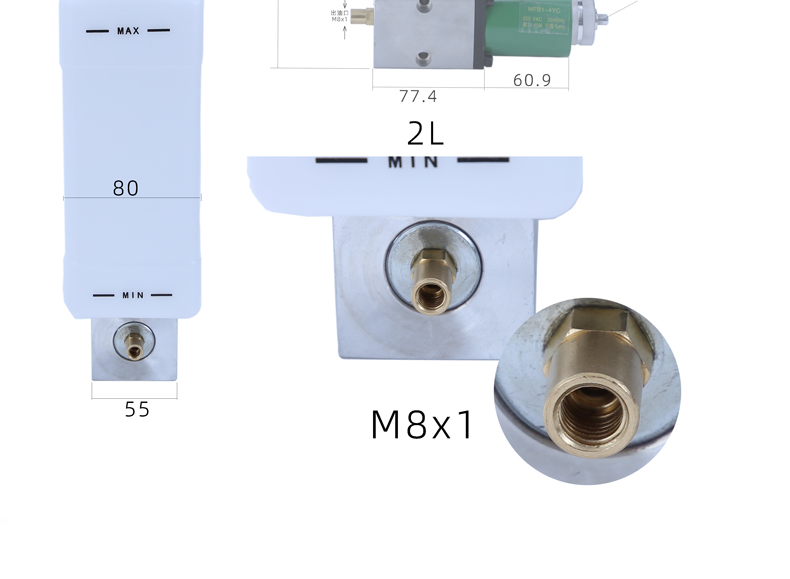

7. Outlet thread M10x1 external thread, internal cone 24 ° Φ6
10, control mode: PLC program, through 1 second, break more than 2 seconds, continuous execution of the program, can achieve continuous oil supply.
