Progressive valve

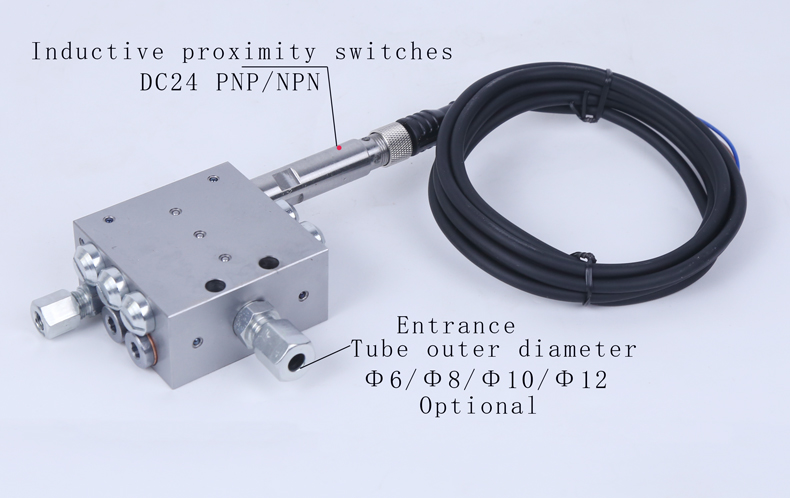

Centralized oil and grease progressive distribution valve Lincoln MVB Sensor DC24V PNP/NPN
| Weight | 3 kg |
|---|---|
| Dimensions | 15 × 15 × 8 cm |

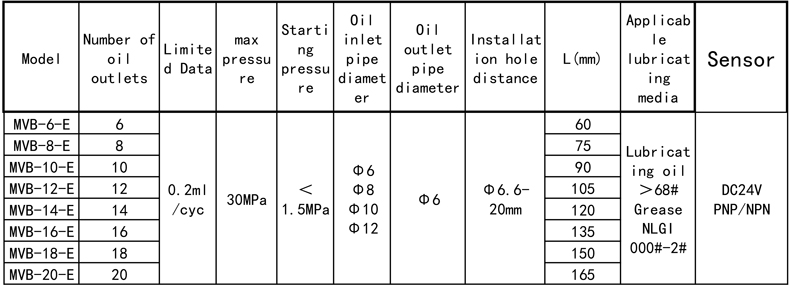

| MVB |
4way, 6way, 8way, 10way, 12way, 14way, 16way, 18way, 20way |
1. MVB progressive distribution valve
2. Maximum bearing pressure: 30MPA
3. Rated flow rate per hole: 0.2ml/cyc
4. Working environment temperature:-20 ℃ ~ 80 ℃
5. Applicable lubricating medium (under standard temperature) lubricating oil: ≥ 68#, grease NLGI 000#-2#
6. It is forbidden to use lubricating medium with particles
7, please ensure the cleanliness of the oil.
